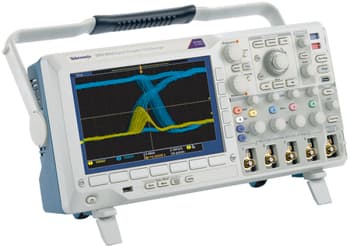

Tek DPO3000 Oscilloscope
Automated performance verification procedure for the Tek DPO3000 Oscilloscope. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.
- Tests
- 30
- Models covered
- 6
- Adjustments
- No
Tests performed
Run all tests or select a subset. Each test has its own connection diagram.
- CH1 Input Impedance
- CH2 Input Impedance
- CH3 Input Impedance
- CH4 Input Impedance
- CH1 Bandwidth
- CH2 Bandwidth
- CH3 Bandwidth
- CH4 Bandwidth
- CH1 DC Gain
- CH2 DC Gain
- CH3 DC Gain
- CH4 DC Gain
- CH1 Offset Accuracy
- CH2 Offset Accuracy
- CH3 Offset Accuracy
- CH4 Offset Accuracy
- Sample Rate & Time Delay
- CH1 Delta-Time Accuracy
- CH2 Delta-Time Accuracy
- CH3 Delta-Time Accuracy
- CH4 Delta-Time Accuracy
- CH1 Random Noise
- CH2 Random Noise
- CH3 Random Noise
- CH4 Random Noise
- Auxiliary Output
- CH1 DC Balance
- CH2 DC Balance
- CH3 DC Balance
- CH4 DC Balance
