TP0509OscilloscopesKeysight / Agilent / HPVersion 1.0

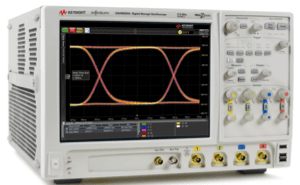

DSO90000A Oscilloscope
Automated performance verification procedure for the DSO90000A Oscilloscope. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.
- Tests
- 17
- Models covered
- 12
- Adjustments
- No
Tests performed
Run all tests or select a subset. Each test has its own connection diagram.
- CH1 Zero Error
- CH2 Zero Error
- CH3 Zero Error
- CH4 Zero Error
- CH1 Offset Accuracy
- CH2 Offset Accuracy
- CH3 Offset Accuracy
- CH4 Offset Accuracy
- CH1 DC Gain
- CH2 DC Gain
- CH3 DC Gain
- CH4 DC Gain
- Time Scale Accuracy
- CH1 Bandwidth
- CH2 Bandwidth
- CH3 Bandwidth
- CH4 Bandwidth
