TP0507OscilloscopesTektronixVersion 1.0

Tek TDS3000 Oscilloscope

Automated performance verification procedure for the Tek TDS3000 Oscilloscope. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
13
Models covered
24
Adjustments
No

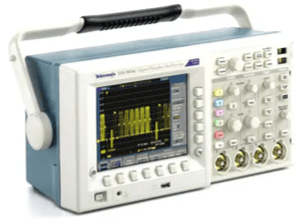

Tek TDS3000 Oscilloscope product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. CH1 DC Measurement Accuracy
  2. CH2 DC Measurement Accuracy
  3. CH3 DC Measurement Accuracy
  4. CH4 DC Measurement Accuracy
  5. CH1 Bandwidth
  6. CH2 Bandwidth
  7. CH3 Bandwidth
  8. CH4 Bandwidth
  9. CH1 Trigger Sensitivity
  10. CH2 Trigger Sensitivity
  11. CH3 Trigger Sensitivity
  12. CH4 Trigger Sensitivity
  13. Sample Rate & Time Delay
