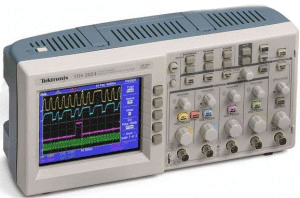

Tek TDS2000 Oscilloscope
Automated performance verification procedure for the Tek TDS2000 Oscilloscope. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.
- Tests
- 18
- Models covered
- 19
- Adjustments
- No
Tests performed
Run all tests or select a subset. Each test has its own connection diagram.
- CH1 DC Gain Accuracy
- CH2 DC Gain Accuracy
- CH3 DC Gain Accuracy
- CH4 DC Gain Accuracy
- CH1 Vertical Position Accuracy
- CH2 Vertical Position Accuracy
- CH3 Vertical Position Accuracy
- CH4 Vertical Position Accuracy
- CH1 Bandwidth
- CH2 Bandwidth
- CH3 Bandwidth
- CH4 Bandwidth
- Sample Rate & Time Delay
- CH1 Trigger Sensitivity
- CH2 Trigger Sensitivity
- CH3 Trigger Sensitivity
- CH4 Trigger Sensitivity
- Ext Trigger Sensitivity
