TP0505OscilloscopesTektronixVersion 1.0

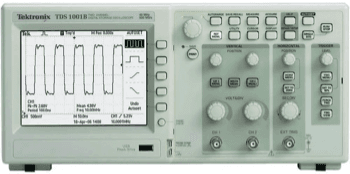

Tek TDS1000 Oscilloscope
Automated performance verification procedure for the Tek TDS1000 Oscilloscope. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.
- Tests
- 10
- Models covered
- 9
- Adjustments
- No
Tests performed
Run all tests or select a subset. Each test has its own connection diagram.
- CH1 DC Gain Accuracy
- CH2 DC Gain Accuracy
- CH1 Vertical Position Accuracy
- CH2 Vertical Position Accuracy
- CH1 Bandwidth
- CH2 Bandwidth
- Sample Rate & Time Delay
- CH1 Trigger Sensitivity
- CH2 Trigger Sensitivity
- Ext Trigger Sensitivity
