TP0504OscilloscopesKeysight / Agilent / HPVersion 1.0

DSO80000B Oscilloscope

Automated performance verification procedure for the DSO80000B Oscilloscope. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
16
Models covered
8
Adjustments
No

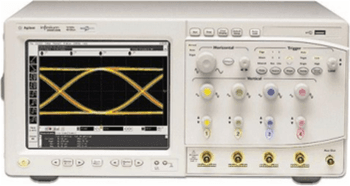

DSO80000B Oscilloscope product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. CH1 Zero Error
  2. CH2 Zero Error
  3. CH3 Zero Error
  4. CH4 Zero Error
  5. CH1 Offset Accuracy
  6. CH2 Offset Accuracy
  7. CH3 Offset Accuracy
  8. CH4 Offset Accuracy
  9. CH1 DC Measurement
  10. CH2 DC Measurement
  11. CH3 DC Measurement
  12. CH4 DC Measurement
  13. CH1 Bandwidth
  14. CH2 Bandwidth
  15. CH3 Bandwidth
  16. CH4 Bandwidth
