TP0082Frequency CountersEIPVersion 1.0

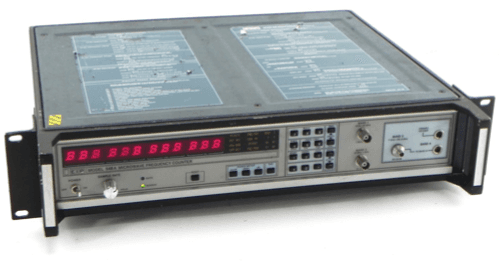

EIP 578/575/548/545 Frequency Counter
Automated performance verification procedure for the EIP 578/575/548/545 Frequency Counter. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.
- Tests
- 8
- Models covered
- 12
- Adjustments
- No
Tests performed
Run all tests or select a subset. Each test has its own connection diagram.
- DUT Identification
- BAND-1 Low Frequency Sensitivity
- BAND-2 Low Frequency Sensitivity
- BAND-1 High Frequency Sensitivity
- BAND-2 High Frequency Sensitivity
- BAND-3 Sensitivity
- BAND-4 Sensitivity
- Internal Timebase
