TP0081Frequency CountersKeysight / Agilent / HPVersion 1.0

53132A/53131A Frequency Counter

Automated performance verification procedure for the 53132A/53131A Frequency Counter. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
17
Models covered
2
Adjustments
Yes

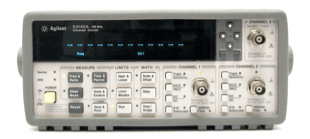

53132A/53131A Frequency Counter product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. Option Identification
  2. Time Interval
  3. CH1 Trigger Level
  4. CH1 Peak Volts
  5. CH1 Frequency Sensitivity; <10MHz
  6. CH1 Frequency Accuracy; <10MHz
  7. CH1 Frequency Sensitivity; >10MHz
  8. CH1 Frequency Accuracy; >10MHz
  9. CH2 Trigger Level
  10. CH2 Peak Volts
  11. CH2 Frequency Sensitivity; <10MHz
  12. CH2 Frequency Accuracy; <10MHz
  13. CH2 Frequency Sensitivity; >10MHz
  14. CH2 Frequency Accuracy; >10MHz
  15. CH3 Frequency Sensitivity
  16. CH3 Frequency Accuracy
  17. Internal Timebase

This procedure includes an Adjustments session.
