TP0083Frequency CountersEIPVersion 1.0

EIP 588/585/598/595 Frequency Counter

Automated performance verification procedure for the EIP 588/585/598/595 Frequency Counter. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
11
Models covered
8
Adjustments
No

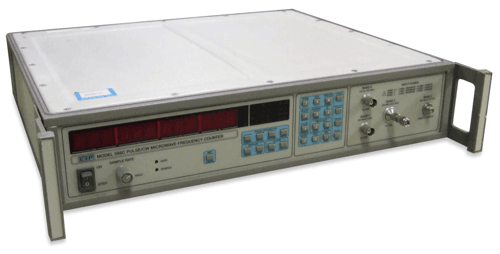

EIP 588/585/598/595 Frequency Counter product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. DUT Identification
  2. BAND-0 Low Frequency Sensitivity
  3. BAND-0 High Frequency Sensitivity
  4. BAND-1 Sensitivity
  5. BAND-1 Pulse Frequency
  6. BAND-2 Sensitivity
  7. BAND-2 Pulse Frequency
  8. Pulse Width & Period
  9. BAND-3 Sensitivity
  10. BAND-3 Pulse Frequency
  11. Internal Timebase
