TP0080Frequency CountersKeysight / Agilent / HPVersion 1.0

53181A Frequency Counter

Automated performance verification procedure for the 53181A Frequency Counter. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
10
Models covered
1
Adjustments
Yes

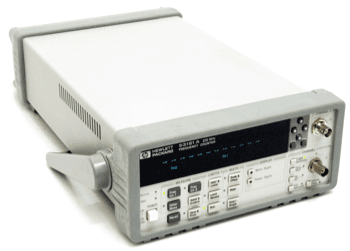

53181A Frequency Counter product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. Option Identification
  2. Trigger Level
  3. Peak Volts
  4. CH1 Frequency Sensitivity; <10MHz
  5. CH1 Frequency Accuracy; <10MHz
  6. CH1 Frequency Sensitivity; >10MHz
  7. CH1 Frequency Accuracy; >10MHz
  8. CH2 Frequency Sensitivity
  9. CH2 Frequency Accuracy
  10. Internal Timebase

This procedure includes an Adjustments session.
