TP0901CWaveguide & AttenuatorsVariousVersion 1.0

Rotary Vane Attenuator, E-Band

Automated performance verification procedure for the Rotary Vane Attenuator, E-Band. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
18
Models covered
2
Adjustments
No

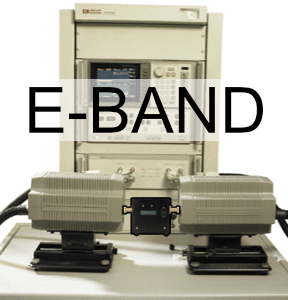

Rotary Vane Attenuator, E-Band product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. Lo-band VNA Initialization
  2. Lo-band 0 dB Attenuation
  3. Lo-band 3 dB Attenuation
  4. Lo-band 6 dB Attenuation
  5. Lo-band 10 dB Attenuation
  6. Lo-band 20 dB Attenuation
  7. Lo-band 30 dB Attenuation
  8. Lo-band 40 dB Attenuation
  9. Lo-band 50 dB Attenuation
  10. Hi-band VNA Initialization
  11. Hi-band 0 dB Attenuation
  12. Hi-band 3 dB Attenuation
  13. Hi-band 6 dB Attenuation
  14. Hi-band 10 dB Attenuation
  15. Hi-band 20 dB Attenuation
  16. Hi-band 30 dB Attenuation
  17. Hi-band 40 dB Attenuation
  18. Hi-band 50 dB Attenuation
