TP0511OscilloscopesKeysight / Agilent / HPVersion 1.0

DSOX3000A Oscilloscope

Automated performance verification procedure for the DSOX3000A Oscilloscope. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
14
Models covered
9
Adjustments
No

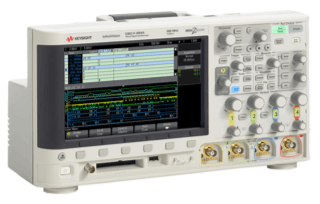

DSOX3000A Oscilloscope product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. CH1 Vertical Gain and Dual Cursor
  2. CH2 Vertical Gain and Dual Cursor
  3. CH3 Vertical Gain and Dual Cursor
  4. CH4 Vertical Gain and Dual Cursor
  5. CH1 Bandwidth
  6. CH2 Bandwidth
  7. CH3 Bandwidth
  8. CH4 Bandwidth
  9. Timebase Accuracy
  10. CH1 Trigger Sensitivity
  11. CH2 Trigger Sensitivity
  12. CH3 Trigger Sensitivity
  13. CH4 Trigger Sensitivity
  14. External Trigger Sensitivity
