TP0510BOscilloscopesKeysight / Agilent / HPVersion 1.0

DSOX2000A Oscilloscope (B)

Automated performance verification procedure for the DSOX2000A Oscilloscope. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
14
Models covered
6
Adjustments
No

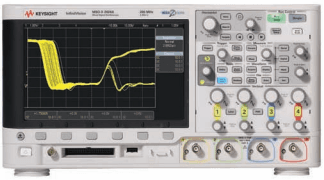

DSOX2000A Oscilloscope (B) product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. CH1 Vertical Gain and Dual Cursor
  2. CH2 Vertical Gain and Dual Cursor
  3. CH3 Vertical Gain and Dual Cursor
  4. CH4 Vertical Gain and Dual Cursor
  5. Timebase Accuracy
  6. CH1 Bandwidth
  7. CH1 Trigger Sensitivity
  8. CH2 Bandwidth
  9. CH2 Trigger Sensitivity
  10. CH3 Bandwidth
  11. CH3 Trigger Sensitivity
  12. CH4 Bandwidth
  13. CH4 Trigger Sensitivity
  14. External Trigger Sensitivity
