AG1003BNI DAQ & PXI ModulesNIVersion 1.1

NI-9212 Temperature Input Module (B)

Automated performance verification procedure for the NI-9212 Temperature Input Module. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.

Tests
12
Models covered
1
Adjustments
Yes

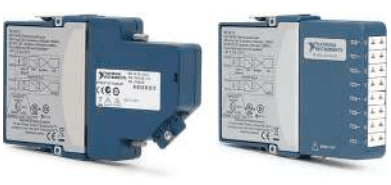

NI-9212 Temperature Input Module (B) product photo

Tests performed

Run all tests or select a subset. Each test has its own connection diagram.

  1. TC0 Voltage
  2. TC1 Voltage
  3. TC2 Voltage
  4. TC3 Voltage
  5. TC4 Voltage
  6. TC5 Voltage
  7. TC6 Voltage
  8. TC7 Voltage
  9. CJC0 Verification
  10. CJC1 Verification
  11. TB-9212 CJC0 Verification
  12. TB-9212 CJC1 Verification

This procedure includes an Adjustments session.
