TP0319Network & Noise Figure AnalyzersKeysight / Agilent / HPVersion 1.0

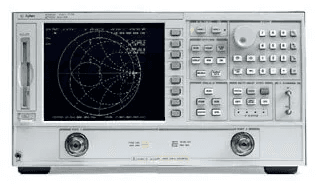

8722ES Network Analyzer
Automated performance verification procedure for the 8722ES Network Analyzer. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.
- Tests
- 9
- Models covered
- 1
- Adjustments
- No
Tests performed
Run all tests or select a subset. Each test has its own connection diagram.
- Frequency Accuracy
- Level Accuracy
- Source Linearity
- Dynamic Range
- Initialize VNA for System Verification
- 20dB System Verification
- 40dB System Verification
- 50Ω Airline System Verification
- Mismatch Airline System Verification
