TP0160Power SuppliesKeysight / Agilent / HPVersion 1.0

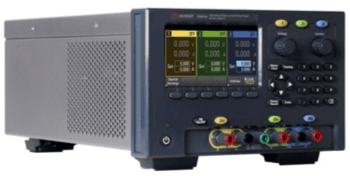

E36311A Power Supply
Automated performance verification procedure for the E36311A Power Supply. Gilium controls the unit under test and the reference standards, records each reading against its tolerance and produces the report.
- Tests
- 25
- Models covered
- -
- Adjustments
- Yes
Tests performed
Run all tests or select a subset. Each test has its own connection diagram.
- Self-Test
- CH1 Voltage Accuracy
- CH1 CV Load Regulation
- CH1 CV Line Regulation
- CH1 Transient Response
- CH1 CV PARD
- CH1 Current Accuracy
- CH1 CC Load Regulation
- CH1 CC Line Regulation
- CH2 Voltage Accuracy
- CH2 CV Load Regulation
- CH2 CV Line Regulation
- CH2 Transient Response
- CH2 CV PARD
- CH2 Current Accuracy
- CH2 CC Load Regulation
- CH2 CC Line Regulation
- CH3 Voltage Accuracy
- CH3 CV Load Regulation
- CH3 CV Line Regulation
- CH3 Transient Response
- CH3 CV PARD
- CH3 Current Accuracy
- CH3 CC Load Regulation
- CH3 CC Line Regulation
This procedure includes an Adjustments session.
